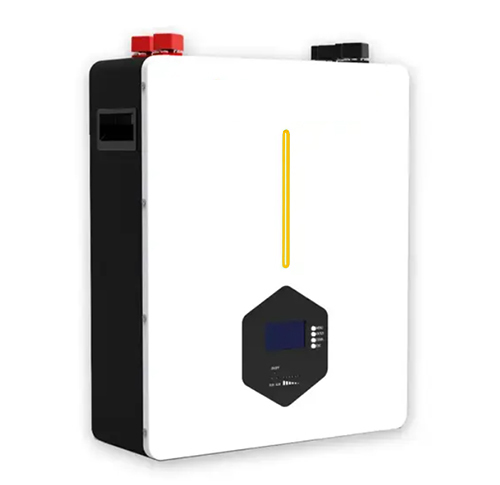

10KWH BATTERY POWER WALL HOME BATTERY STORAGE
-Lithium iron phosphate battery ( LiFePO4).
-Currently the safest lithium technology.
-Excellent resistance to abuse.
-Less than 3 % self discharging.
-Maintenance-free, modular and light weight Up to 60 % weight saving.
-Battery monitoring storage history Built in safety protection.
-Quality guaranteed 5 Years Warranty,10-15 Years Designed service life.
-Available communication ports.Customizable colors, wheels.
-Light strips can be customized in color.
- Information
10Kwh Battery Managment system
the 48V 200Ah 10 kWh battery Powerwall by Kamada Power, featuring a built-in Battery Management System (BMS) specifically tailored for solar energy storage systems. Unlike conventional BMS designs, our innovative system is engineered exclusively for solar applications, ensuring optimal performance and longevity.
the BMS incorporates integrated communication protocols with leading inverter brands in the market, guaranteeing seamless compatibility and enhanced stability. This advanced feature not only maximizes system efficiency but also extends the lifespan of the battery, providing homeowners with a reliable and durable energy storage solution.
Our Home Battery Backup BMS (Battery Management System) is a professionally designed system aimed at ensuring the safety and reliability of the battery system. Here are the key features of our BMS:
Over temperature cutoff: When the battery temperature exceeds the safe range, the system automatically cuts off the battery power to prevent potential risks from overheating.
Over Voltage cutoff: Once the battery voltage surpasses the safety threshold, the BMS immediately interrupts the charging process to protect the battery and surrounding equipment from the effects of overvoltage.
Short circuit protection: In the event of a battery short circuit, the BMS immediately cuts off the current to prevent battery overload and equipment damage.
Over charge/discharge cutoff: The BMS monitors the Battery charging and discharging status and automatically stops charging or discharging when the battery reaches the maximum allowable value during charging or the minimum allowable value during discharging to prevent damage to the Battery lifespan.
Over current cutoff: When abnormal high current occurs during battery charging or discharging, the BMS immediately interrupts the current to prevent battery overload and potential safety risks.
Communication port: RS232, RS485, Bluetooth(optional), WiFi(optional), CAN(optional)
Specifications of 10KWH Home Battery Power wall:
Model Power Wall Mounted 10kWh LiFePO4 Battery Pack Capacity Energy 10.24 kWh Capacity Ah 200Ah Humidity 5%~95% Usable Capacity 9.7kWh Nominal Voltage 51.2V Operation Voltage 46.4V – 57.6V Maximum Charging/Discharging Current 90A@25℃/120A@25℃ BMS Max 15 Bateries In Parallel Life Cycling (0.5C 25℃) 6000 cycles Warranty 10MWh per kWh 5 Years Operation Temperature 0℃ ~ +50℃ Storage Temperature -30℃ ~ +60℃ Weight 90KG Dimensions 552471248MM Scalable Max 15PCS In Parallel Certifications MSDS, UN38.3, RoHS, IEC62619, UL Communication RS485, CAN or RS232 for Hybrid Inverters
