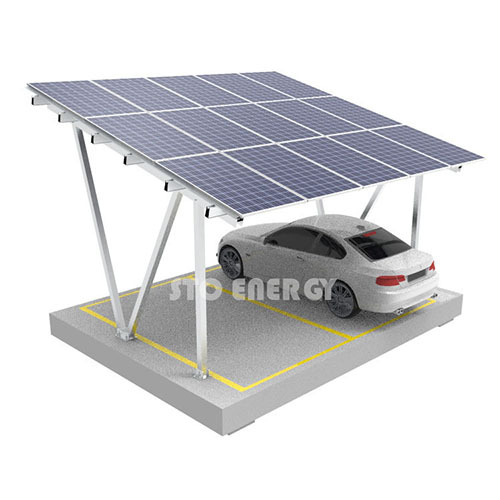

Waterproof solar carport Mounting System

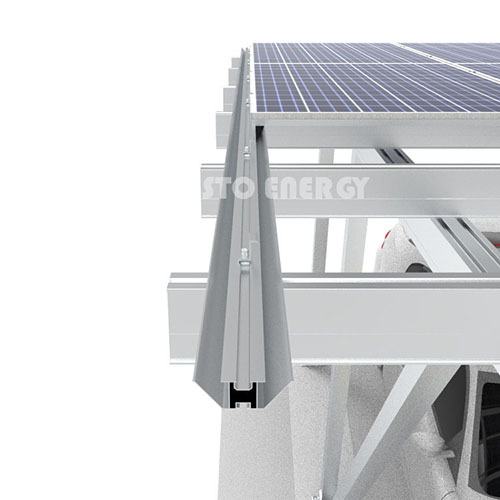

1.Special design: Use special design waterproof rail, rainproof and waterproof.
2.Light weight and durable, cost saving，Maximum pre-assembled, quick installation.
3.Customization Design: the carport parking can be single row, double rows, Triple rows and more rows.
4.Environmental protection: By harnessing solar power, these solar carport reduce reliance on fossil fuels and decrease carbon emissions. They also help in reducing the urban heat island effect by providing shade and reducing heat absorption.
- Information
Product Description：

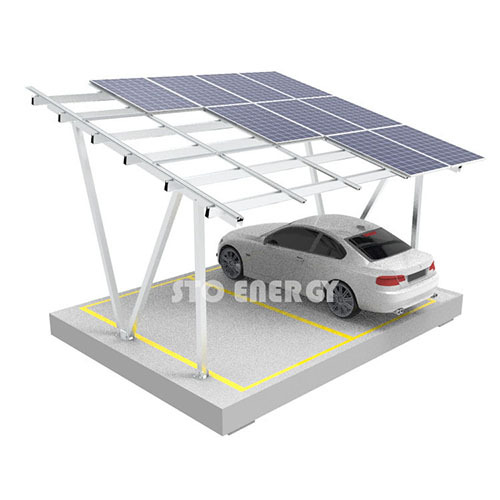

STO Waterproof Carport Solar Mounting System adopts high-strength Al6005-T5, all components are pre-assembled in factory before shipping, ensure the bracket can be installed with fast installation and save your labour cost. Panels can make up the roof itself by mounting directly on the rails, instead upon the metal sheets or other canopies. It’s an effective solution that is suitable for most houses and parking areas.
Specification：
Module type | Any sizes,framed or frameless |
Tilt angle | 5°, 10°, 15° |
Structure height | >2.5m |
Max wind speed | 60m/s |
Max snow load | 1.4KN/m2 |
Standard | ISO, AS/NZ 1170, CE, TUV |
Material | Hot-galvanized Steel Q235 and AL6005-T5 |
Color | Natural color, black |
Finishing | Anodizing |
Foundation | Concrete |
Feature | Waterproof |
Warranty | 10 years warranty |
